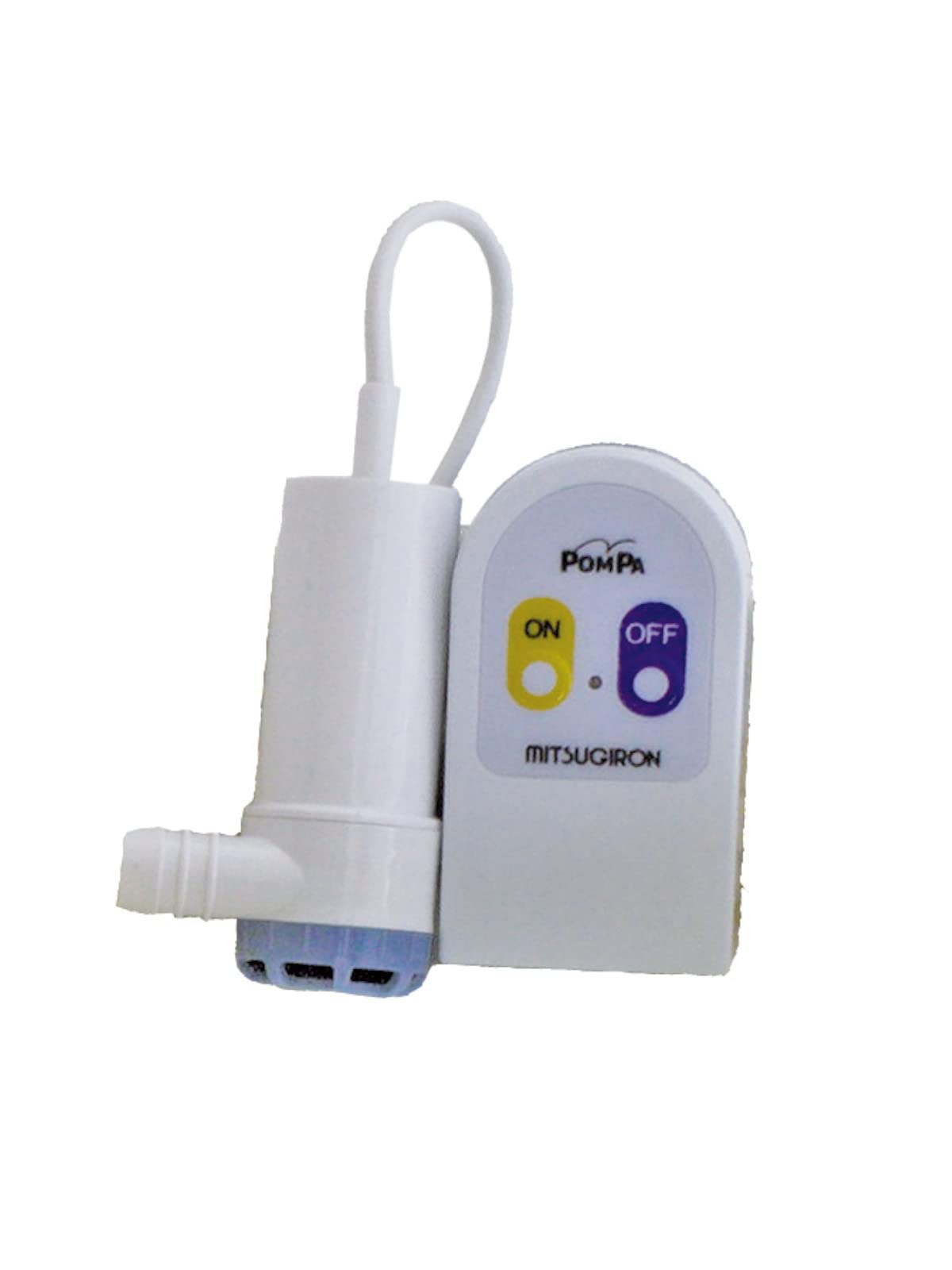

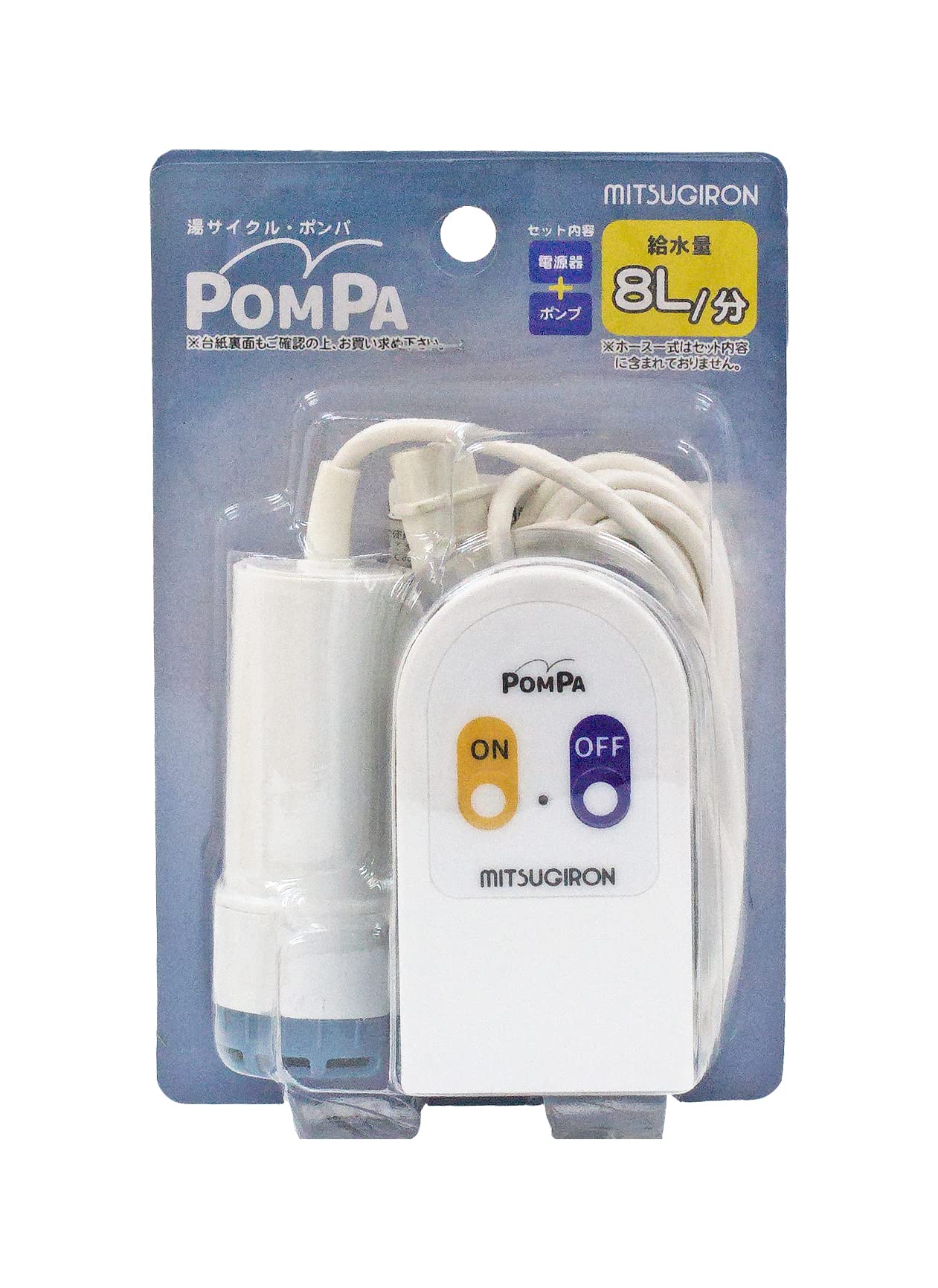

Mitsugiron Bath Pump Manual Switch Type Power Supply Pump Water Supply 8L/min ON/OFF Switching Bath Remaining Hot Water Washing Machine Water Saving POMPA BP-61
Brand: Mitsugiron
Color: new model
Features:

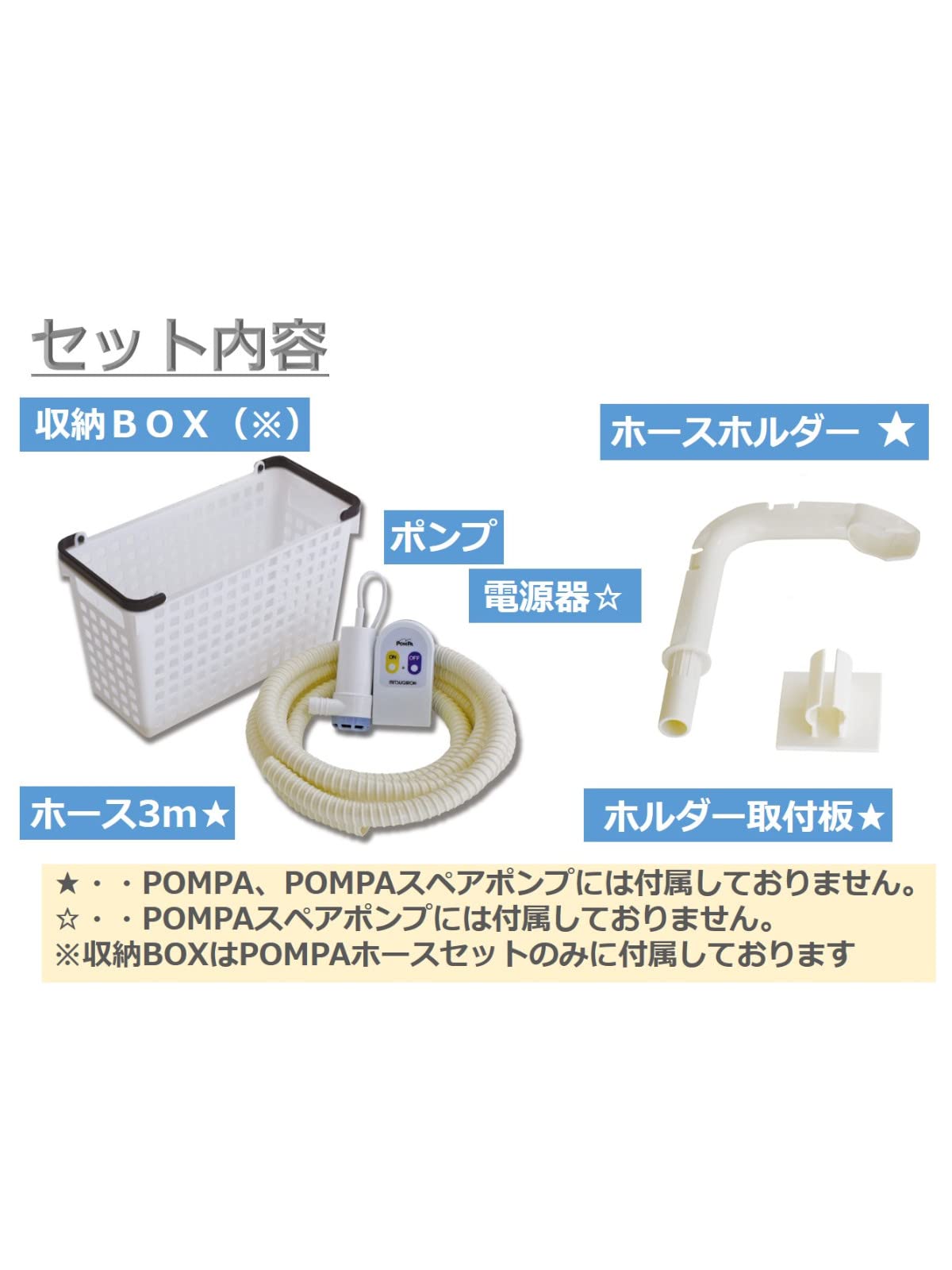

- Set contents: Power supply (52 x 45 x 93 mm), pump (57 x 37 x 92 mm/cord length 3 m)
- Input: 100V 50/60Hz 30VA / Output: DC11V 1.3A
- Water temperature range: 5~45℃
- Water supply amount: 8L/min
- Lifting range: within 1.5m
- Compatible hose: Inner diameter 15mm x maximum length within 5m
- Country of origin: China

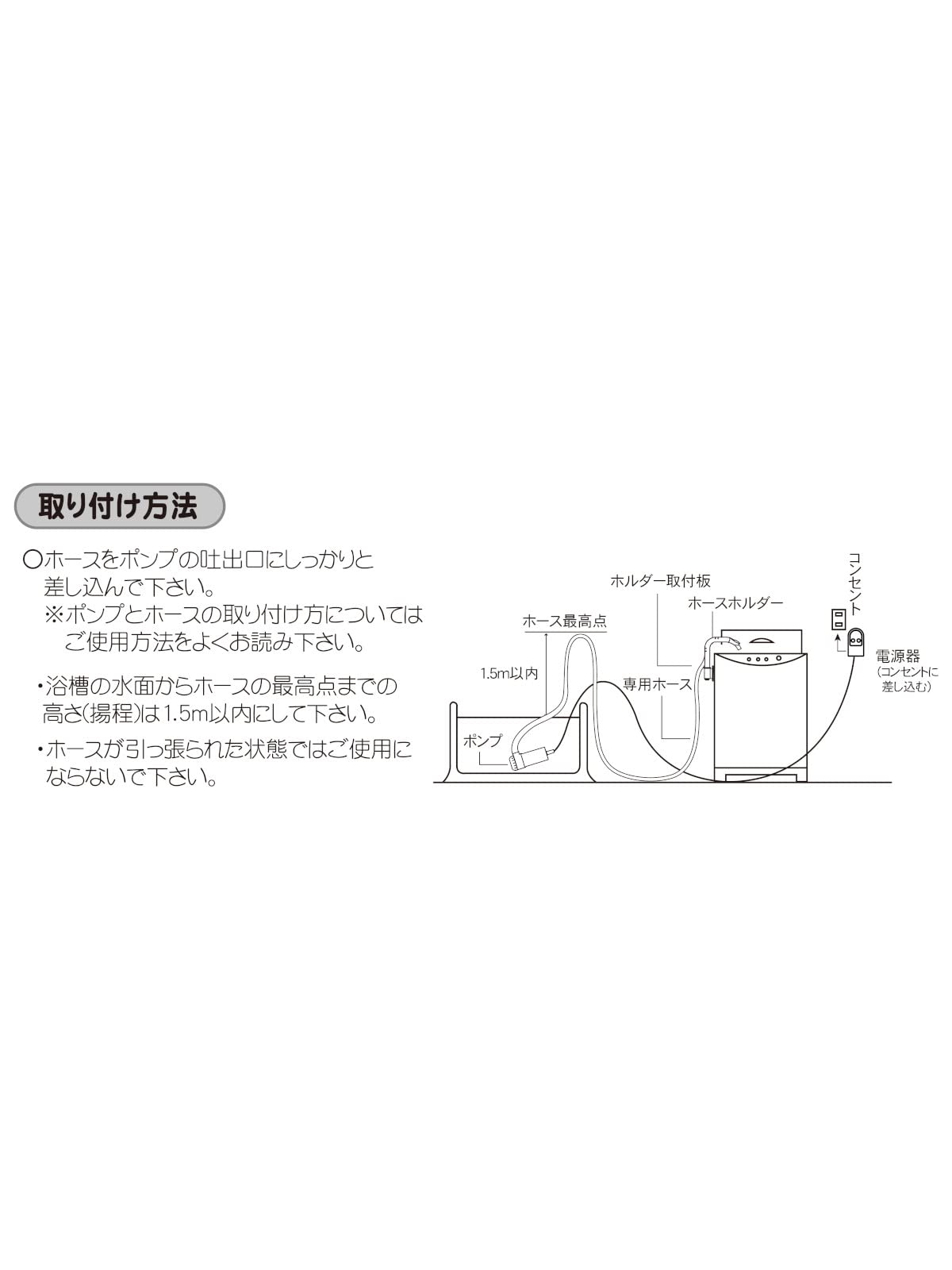

Details: 《Installation method》
●Insert the hose firmly into the pump outlet.
*Please read the instructions carefully for how to install the pump and hose.
●The height (lifting height) from the water surface of the bathtub to the highest point of the hose should be within 1.5m.
●Do not use with the hose pulled.
《How to use》

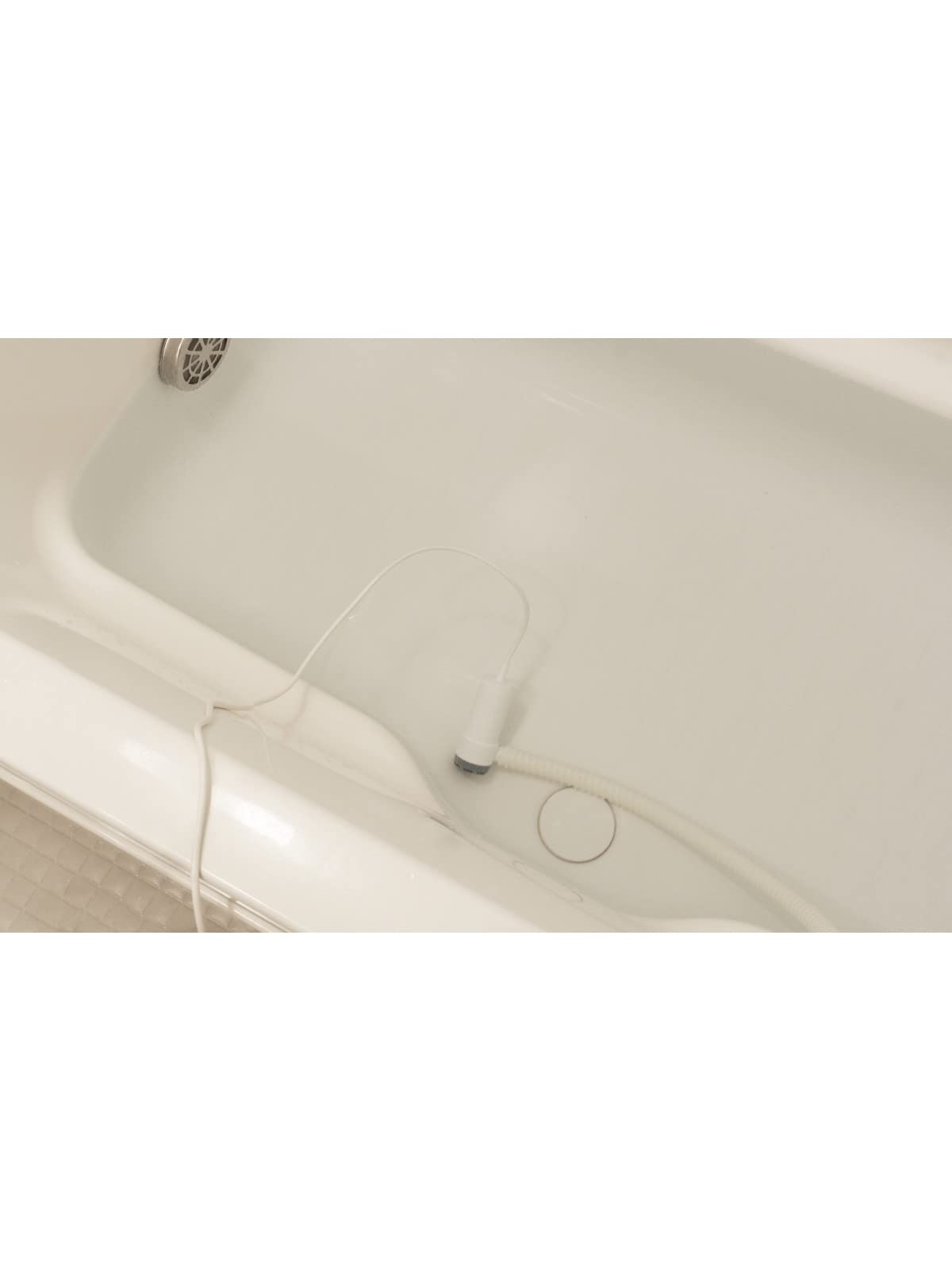

1. Place the pump body in the bathtub, remove the air inside the pump, and then set the hose underwater.
*Please turn the pump body sideways to release the air. If air is trapped in the pump body, water may not be drawn up.
2. Make sure the switch is "OFF" and insert the pump plug straight into the DC connector of the power supply.
3.Plug the power supply plug straight into a 100V outlet.
4. Turn on the power supply switch and start supplying water. The power lamp (green) lights up.

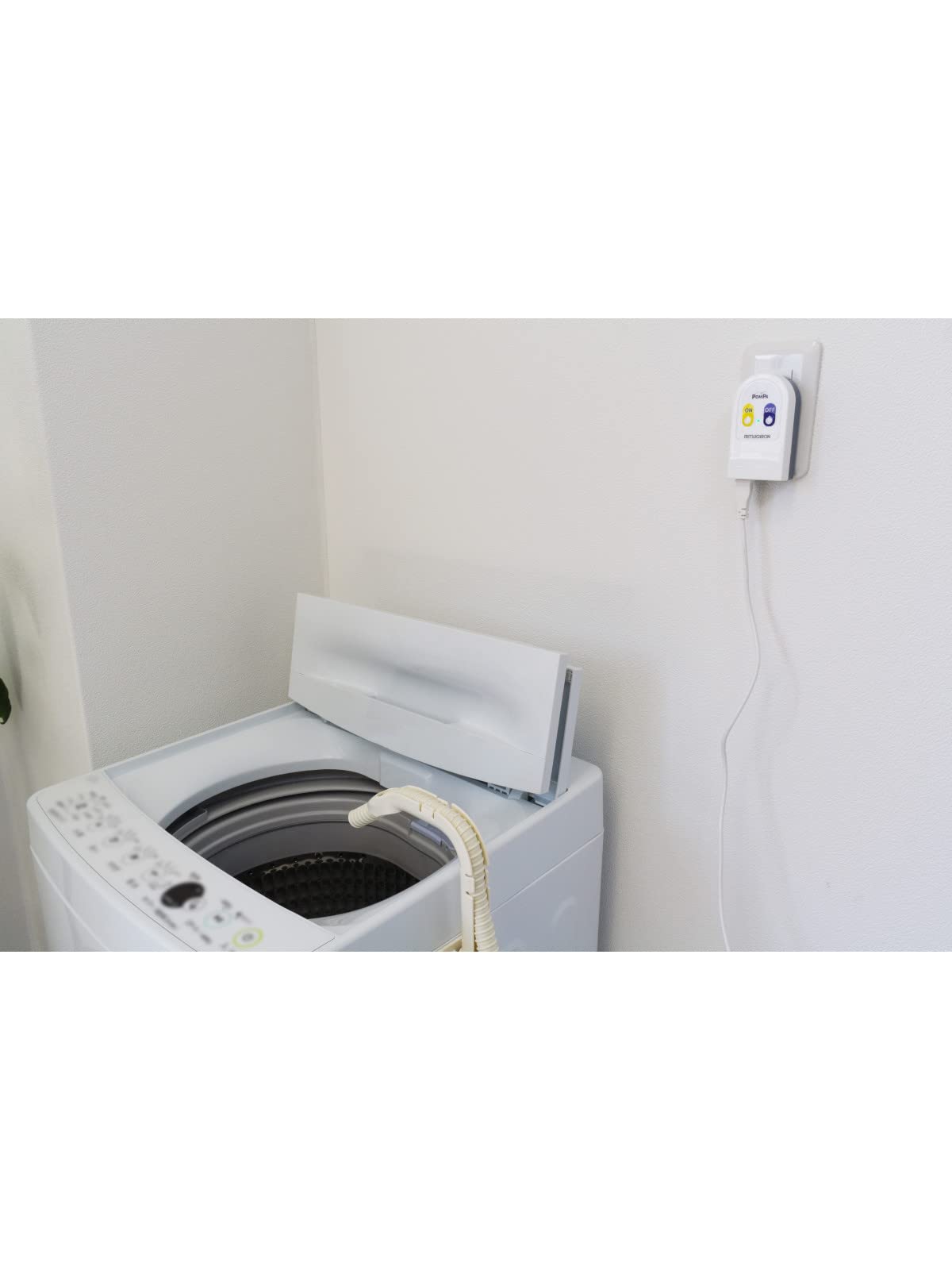

5. Supply water up to the specified water level of the washing machine, and after supplying water, turn the power supply switch to "OFF" to stop pump operation. The power lamp will turn off.
6. After use, please unplug the power supply plug straight from the outlet.
7. Unplug the pump plug straight from the power supply's DC connector.
8. Lift the pump body out of the bathtub and drain the water thoroughly.
9. Remove the hose and put it away.
*Make sure that no water remains in the hose at this time.
《Specifications》
[Type] POMPA
[Input] 100V 50/60Hz 30VA
[Output] DC11V 1.3A
[Size] Power supply: 52 x 45 x 93mm (including power supply plug) Pump: 57 x 37 x 92mm
[Material] Power supply: PC, PVC Pump: PP Pump cord: PVC Hose: PVC, PP Hose holder: PP Hose mounting plate: ABS Storage box: PP
[Usable temperature range] Ambient temperature: 5~35℃ Water temperature: 5~45℃
Cord length: pump cord 3m
[Water discharge amount] Maximum water discharge amount (0m) 10L/min When the head is 1m 8L/min When the head is 1.5m 6L/min
[Lifting range] Within 1.5m
[Compatible hose] Inner diameter 15mm x maximum length within 5m
Packing size: 6.9 x 4.5 x 2.6 inches
